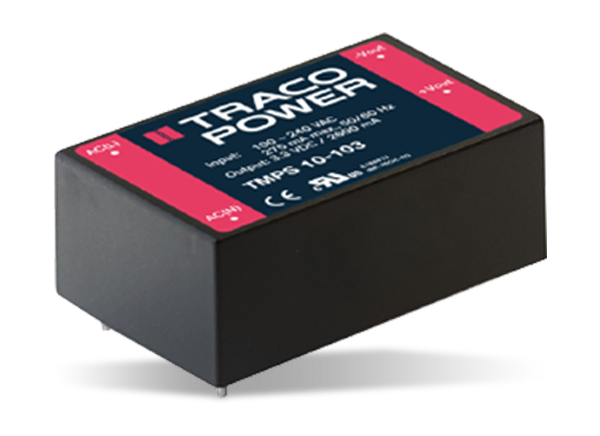

TRACO Power TMPS10 10W AC/DC Power Modules

TRACO Power TMPS10 10W AC/DC Power Modules are ultra-compact (1.0” x 1.5”) AC/DC power supply modules in a lightweight, fully encapsulated plastic casing for PCB mounting. TMPS10 meets the latest safety approvals for industrial and IT solutions (IEC/EN/UL 62368-1) and is certified to IEC/EN 60335-1 for household appliances. These TRACO Power 10W modules are designed for low-power applications or stand-by power circuits of larger systems (130% peak currents facilitate increased loads during activation of system-level circuits). No load power consumption of 0.15W maximum (ERP Ready) and EN60335-1 approval make these modules ideal for IoT, building/home automation, and industrial applications.

Features

  • Ultra Compact 10W PCB Power module in 25.4mm x 38.1mm (1.0" x 1.5") package
  • Certified to EN 60335-1 and UL 62368-1 for household and industrial appliance
  • Reinforced I/O isolation of 4000VAC
  • -25°C to +70°C operating temperature range
  • Allows 130% peak current up to 30s
  • Ready to meet ErP directive, <0.15W no load power consumption
  • EMI meets EN 55032 class B and EN 55014-1
  • Protection class II prepared
  • 3-year product warranty
  • Short circuit and output overvoltage protection
  • RoHS compliant

Applications

  • Industrial
  • IT
  • Household appliances

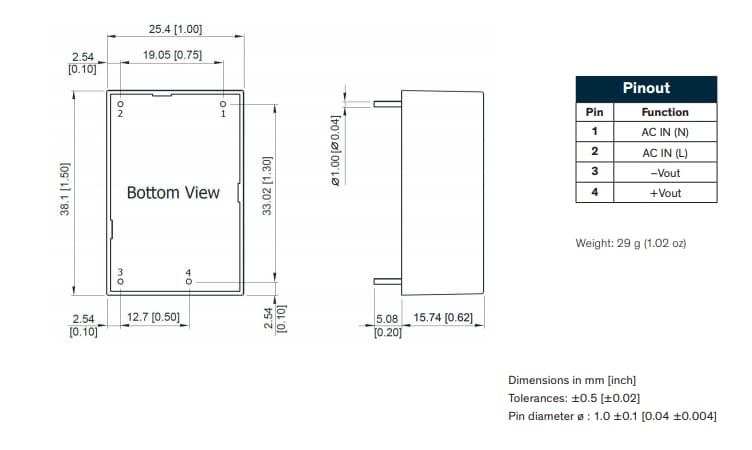

Outline Dimensions

Chart - TRACO Power TMPS10 10W AC/DC Power Modules
View Results ( 7 ) Page
Part Number Output Power Output Voltage-Channel 1 Output Current-Channel 1 Description
TMPS 10-105 10 W 5 V 2 A AC/DC Power Modules 10W 5V 2A 1X1.5 Encap PCB
TMPS 10-103 8.6 W 3.3 VDC 2.6 A AC/DC Power Modules 8.6W 3.3V 2.6A 1X1.5 Encap PCB
TMPS 10-148 10 W 48 V 210 mA AC/DC Power Modules 10W 48V 210mA 1X1.5 Encap PCB
TMPS 10-124 10 W 24 V 410 mA AC/DC Power Modules 10W 24V 410mA 1X1.5 Encap PCB
TMPS 10-109 10 W 9 V 1.1 A AC/DC Power Modules 10W 9V 1.1A 1X1.5 Encap PCB
TMPS 10-112 10 W 12 V 830 mA AC/DC Power Modules 10W 12V 830mA 1X1.5 Encap PCB
TMPS 10-115 10 W 15 V 660 mA AC/DC Power Modules 10W 15V 660mA 1X1.5 Encap PCB
