Crydom / Sensata ED Solid State Relays
Crydom / Sensata ED Solid State Relays (SSRs) are DC output SSRs in an industry-standard EMR plugin package. The Crydom / Sensata ED SSRs feature a 5A current rating and a load voltage range of 1VDC to 48VDC and 1VDC to 80VDC. The series is motor controller rated and fits standard DIN rail and PCB mountable sockets.
Features
- DC output SSR in an industry-standard EMR plugin package
- 5A rated current
- 1VDC to 48VDC and 1VDC to 80VDC load voltage range
- Fits standard DIN rail and PCB mountable sockets
- LED input status indicator
- AC or DC control
- cUL Recognized, IEC Rated, CE and RoHS compliant
- Motor controller rated
Specifications
- Control voltage
- 18VAC to 36VAC or 90VAC to 140VAC
- 5VDC to 15VDC, 18VDC to 32VDC, or 48VDC to 72VDC
- 500Hz maximum pulse width modulation
- -30°C to +80°C operating temperature range

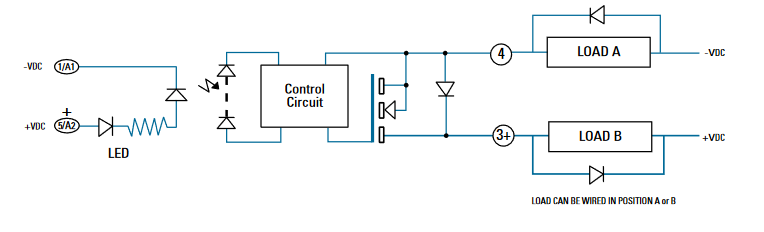

Wiring Diagram
