Renesas Electronics Precision Industrial Temperature Control
Renesas Electronics Precision Industrial Temperature Control is a solution for accurate temperature monitoring and control. The RX23E-A 32-bit microcontroller (MCU) combined with a precision analog front-end results in a system solution that provides accurate temperature measurements with a minimal number of components.
Features
- Highly integrated MCU with 24-bit Delta-Sigma ADC allows for minimal components
- RS-485 transceiver with high electrostatic discharge (ESD) protection for robust industrial interfaces
- Low noise power component selection
Associated Products
Renesas Electronics RX23E-A MCUs
32MHz and 32-bit RX MCUs with built-in FPU and up to 256KB flash.
Renesas Electronics ISL85415 Switching Regulator
Wide voltage input range, 500mA output current provides a flexible and dependable design solution.
Renesas Electronics ISL21090 Voltage Reference
Ultra-low noise, high DC accuracy precision voltage reference.
Renesas Electronics ISL317xE RS-422/RS-485 Interface ICs
3.3V single transceivers that meet both the RS-485 and RS-422 standards for balanced communication.

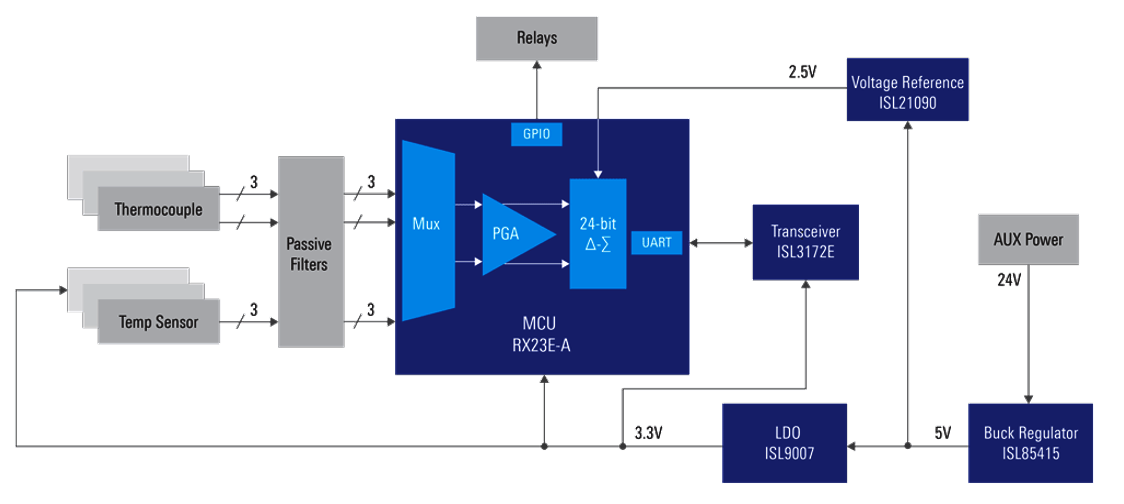

SYSTEM BLOCK DIAGRAM
ADDITIONAL APPLICATION SOLUTIONS
See how Renesas' complementary product portfolios of Analog + Power + Embedded Processing work together to deliver comprehensive solutions.
Published: 2020-07-10
| Updated: 2022-03-11
