Panasonic EZPV-D Plastic Film Capacitors
Panasonic EZPV-D Plastic Film Capacitors are metallized polypropylene film capacitors designed for DC filtering and DC link circuits. These film capacitors feature low Equivalent Series Resistance (ESR), low loss, high reliability, high safety, and a long product life. The EZPV-D film capacitors are constructed with metalized dielectric electrodes, UL 94V-0 rated plastic case and sealing, and tinned wire terminals. These plastic film capacitors offer ±10% capacitance tolerance and a rated capacitance range of 8μF to 65μF. The EZPV-D plastic film capacitors are AEC-Q200 and RoHS compliant. Typical applications include onboard chargers, AC/DC and DC/DC converters for automotive and solar inverters, wind power generation, industrial power supplies, and inverter circuits in appliances.
Features
- High safety
- Long product life and high reliability
- Low loss and low ESR
- Polypropylene film dielectric
- Metalized dielectric electrodes with a segmented pattern
- Flame retardant (case and sealing resin)
- UL 94V-0 rated plastic case and sealing
- Tinned wires terminals (2-pin and 4-pin versions)
- AEC-Q200 compliant
- RoHS compliant
Applications
- DC filtering and DC link circuit
- Solar inverters
- Wind power generation
- Industrial power supplies
- Inverter circuit in appliances like air conditioners
- On board chargers, AC/DC, and DC/DC converters for automotive
Specifications
- ±10% capacitance tolerance
- 8μF to 65μF rated capacitance
- 600V, 700V, 800V, 1000V, and 1100V rated voltages
- -40°C to 105°C operating temperature range

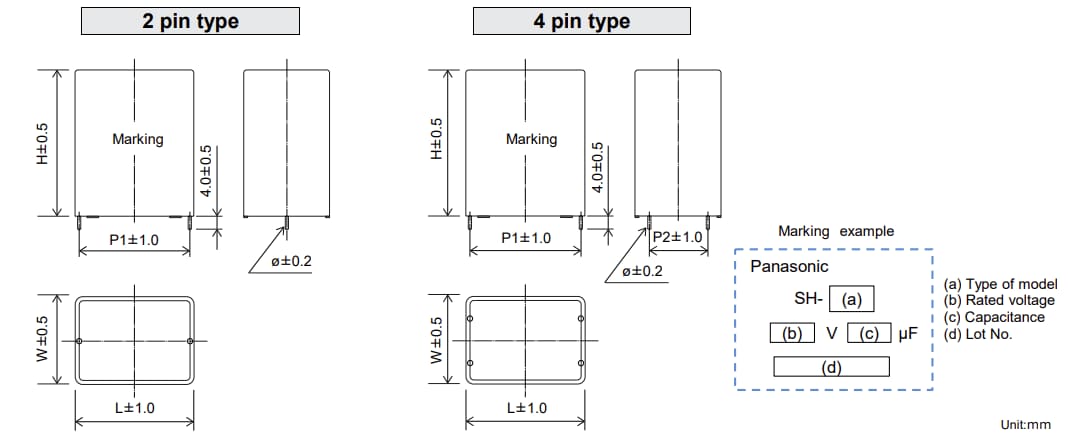

Dimensional Diagram
