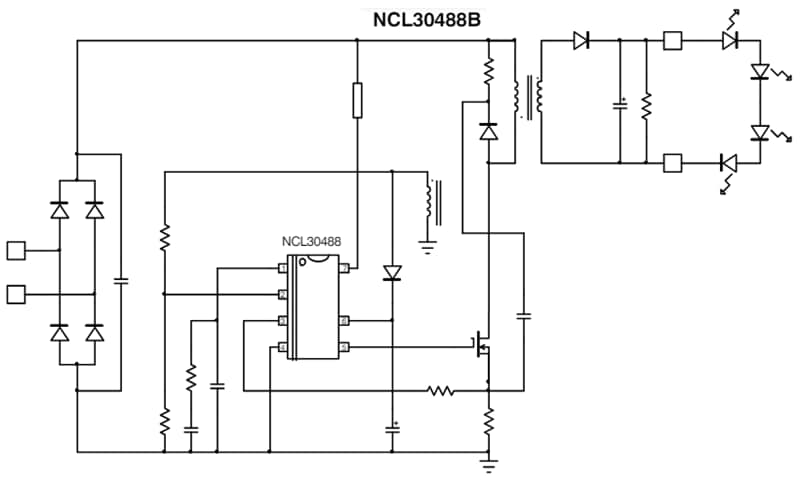

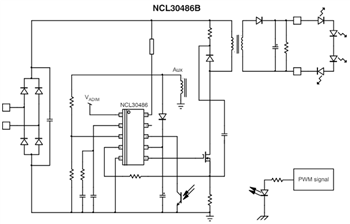

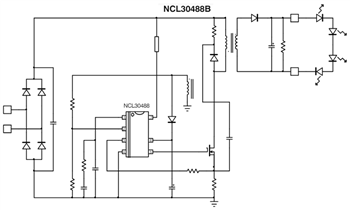

onsemi NCL30486B/88B Single Stage CC/CV PSR Controllers

onsemi NCL30486B/88B Single Stage CC/CV PSR Controllers are high PF single-stage constant current and voltage PSR PWM controllers. The NCL30486B/88B is used for Flyback/Buck-Boost/Sepic/Boost. This controller operates in a QR mode to provide high efficiency. Thanks to a novel control method, the device can tightly regulate a constant LED current from the primary side. The device is highly integrated with a minimum number of external components. A robust suite of safety protection is built in to simplify the design.

Features

Integrated 700V HV Startup
Fast startup and low standby power
Precise current regulation accuracy (<±2% typical)
Constant brightness
Precise voltage regulation accuracy (<±1% typical)
Aux. power supply for MCU and cold start-up
PF (>0.95)/THD (<10%)
Exceeds global standards

Quasi-resonant control
Higher efficiency
Optional PSR/SSR mode
Design flexibility
Standby Mode
Under 150mW standby power
Protections - BO/ Line OVP/ VCC OVP - LED Open/ short protection - Winding / Diode short protection - TSD
