Molex USB Type-C® Connectors
Molex Port-On USB Type-C® Connectors offer a slim-fit spring design and flexible height options, helping save PCB space while meeting diverse design height requirements with minimal investment. Molex Port-On USB Type-C Connectors are robust and easy to use, featuring a three-tier insert-molding process, a contact height above the tongue surface, and a solder-tail shell design. The product line includes variants that comply with USCAR2 (T2/V1), making them suitable for automotive applications.
Features
- Slim-fit design with 0.50mm pitch helps save PCB real estate
- Supports 5A/240W power and up to 10Gbps data rates
- USB, USB 2.0, USB 3.1, and USB 3.2 standards
- 6 to 24 positions
- Wide range of styles and mounting options
- Strong PCB connections for reliable performance
- IPX5 and IPX8 protection ratings
- Available with TID number
Applications
- Consumer
- Electronic watches
- Smartphones/wireless chargers
- Power banks
- PCs/laptops
- Televisions
- Video games
- Graphic cards
- AR/VR devices
- In-flight entertainment systems
- Medical
- Glucometers
- Electronic inhalers
- Industrial and commercial
- Identity door-locking systems
- Oscilloscopes
- Projectors
- Point-of-sale registers
- Car infotainment navigation equipment
- Smart home systems
Videos
USB C Connector Family

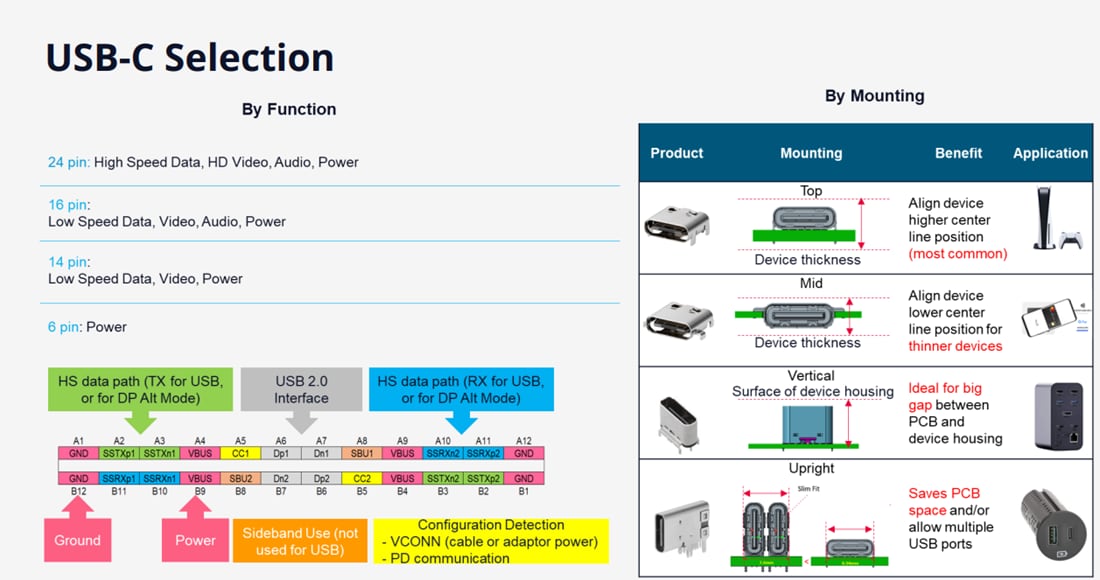

USB-C Selection Chart
