Mikroe MIKROE-2848 Charger 5 Click

Mikroe MIKROE-2848 Charger 5 Click can charge Lithium-Ion and Lithium-Polymer batteries and introduces the fast charging feature to the line of click board™ charger products. The click features overvoltage and under voltage protection, reverse discharge and overtemperature protection. Other features include automatic recharge and end of charge safety timer. Charger 5 click uses a programmable digital potentiometer for adjusting the fast charging constant current, which can be set from 100mA to 950mA, via the SPI interface.

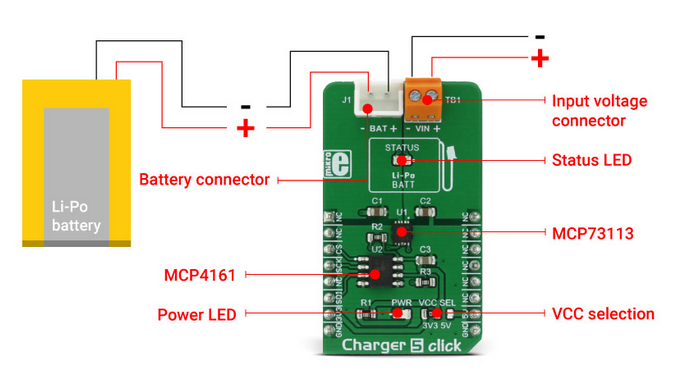

Charger 5 click carries the Microchip MCP73113 single-cell Li-Po/Li-Ion battery charge IC. The click also has a Microchip MCP4161 Digital Potentiometer. This click can be used to easily and securely charge and fast-charge batteries on many different devices that use 3.7V Li-Po/Li-Ion batteries.

Features

Battery-charger type
On-board modules MCP 73113, MCP 4161
Many different options and algorithms optimized for safe and efficient charging of the Li-Po and Li-ion batteries
Used for fast and secure charging Li-Po/Li-ion 3.7V batteries for a wide range of battery-powered applications
