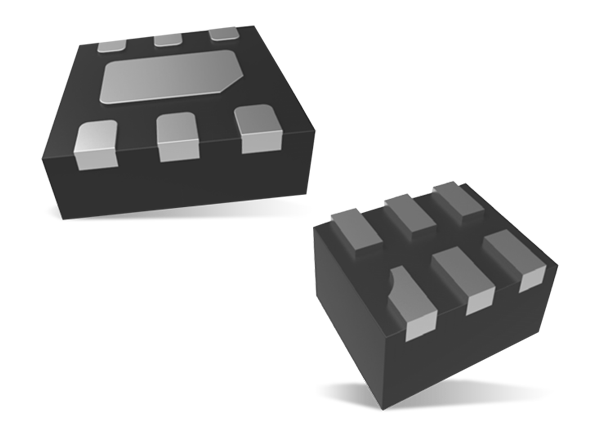

Micro Commercial Components (MCC) ESD DFN Protection Devices

MCC ESD DFN Protection Devices offer fast response times and ultra-low capacitance (0.3pF to 620pF). The ESD DFN components feature a low 3.3V to 16V operating voltage, reverse stand-off voltage, and clamping voltages ranging from 11V to 75V. The devices have low leakage and are housed in small packages to save board space. The epoxy meets UL 94V-0 flammability rating and the devices have a moisture sensitivity level (MSL) of 1.


  • Halogen-free available upon request by adding the suffix "-HF"
  • Lead-free finish, RoHS compliant
  • Epoxy meets UL 94V-0 flammability rating
  • Moisture sensitivity level (MSL) 1
  • Low clamping voltage
  • Fast response times
  • Ultra-low capacitance
  • Low operating voltage
  • Low reverse stand-off voltage
  • Low clamping voltages
  • Low leakage
  • Housed in small packages to save board space


  • Cellular handsets and accessories
  • Video interface
  • MMC/SD ports
  • USB 2.0, USB OTG, USB 3.0
  • HDMI 1.4
  • High-speed data lines
  • Notebooks and handhelds
  • Portable instrumentation
  • Digital cameras
  • Peripherals
  • Audio players
  • Keypads, side keys, LCD displays
  • Display ports and MDDI ports
  • PCI Express and SATA ports


  • 3.3V to 16V working voltage range
  • 1 to 4-channels
  • 4.3V to 18V breakdown voltage range
  • 11V to 75V clamping voltage range
  • 30W to 4.2kW peak pulse power dissipation range
  • 1A to 120A peak pulse current range
  • ESD voltage ranges
    • 8kV to 30kV contact
    • 15kV to 30kV air gap
  • 0.3pF to 620pF diode capacitance range
  • Operates up to +150°C
Published: 2016-06-13 | Updated: 2022-03-11
