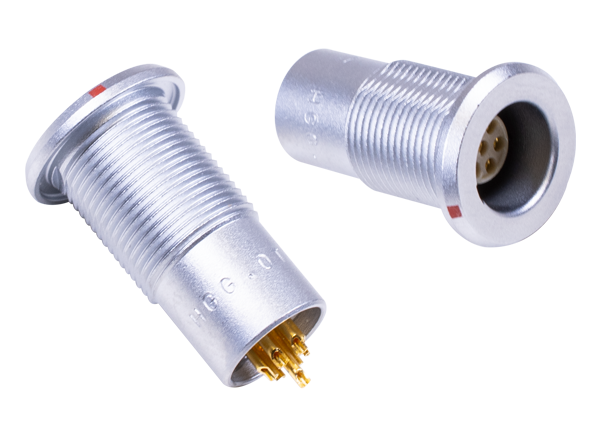

LEMO T Series Connectors

LEMO T Series Connectors are specifically designed for use in outdoor applications. They include an inner sleeve and seals to prevent the penetration of solids and liquids. T series connectors are capable of becoming watertight when mated to give a protection rating of IP68 per IEC 60529 standards. LEMO T Series Connectors are compatible with existing B sockets, use the same mounting hole as B sockets, and feature a push-pull self-latching system.


  • IP68 when mated
  • Push-pull self-latching system
  • Mechanical key (FGG) with multiple keys to avoid cross-mating
  • High packing density for space savings
  • 360° shielding for full EMC shielding
  • Compatible with existing B sockets
  • Same mounting hole as B sockets
  • Black chrome-plated brass and plastic outershell available
  • Multiple types of 2 to 32 contacts
  • For cables from 1.0mm to 10.5mm
  • Solder, crimp, or print contacts


  • Vision equipment
  • Aircraft communications
  • Land communications
  • Defense / Security
  • Aerospace / Aviation
  • Test and easurement
  • Outdoor

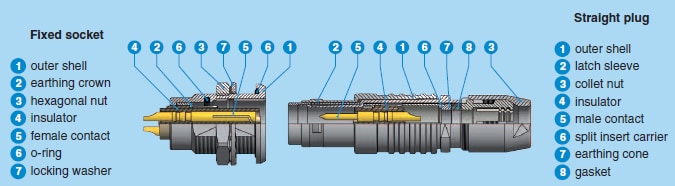

Internal Components

LEMO T Series Connectors

Part Numbering System

LEMO T Series Connectors
Published: 2015-03-06 | Updated: 2023-05-16
