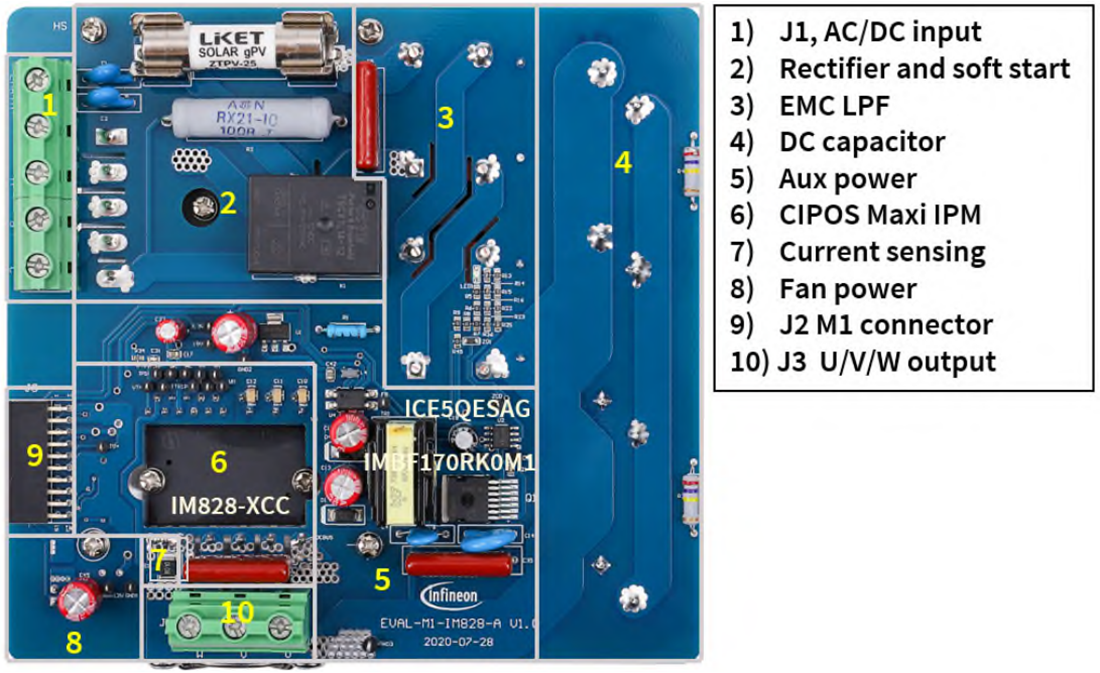

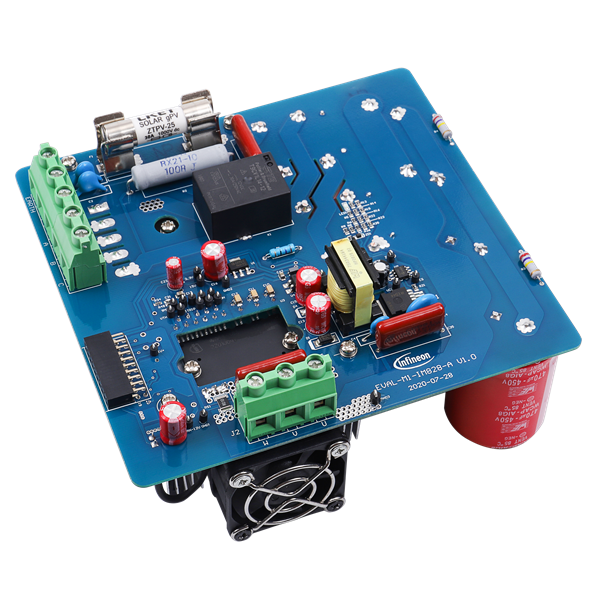

Infineon EVAL-M1-IM828-A Evaluation Board evaluates the CIPOS™ Maxi devices. The EVAL-M1-IM828-A features the IM828-XCC, one of the CIPOS™ Maxi product family. The IM828-XCC combines six 1200V CoolSiC™ MOSFETs with an optimized 6-channel SOI gate driver. It is optimized for an industrial application like power factor correction of heating ventilation air conditioning (HVAC), fan motors, pumps, and motor drives. The Infineon EVAL-M1-IM828-A was developed to support customers during their first steps of applications with CIPOS™ Maxi IPM. In combination with control-boards equipped with the M1 20pin interface connector, like EVAL-M1-101T, it demonstrates our CIPOS™ Maxi SiC IPM technology for motor drive.
Ready to use power stage with 1200V IPM to drive 3-phase motor
Nominal input voltage 380VAC
Maximum 8kW output power with cooling
Onboard EMI filter
Over current protection
Over temperature protection
Test pads with hooks to attach standard oscilloscope probes
Standard MADK M1 20-pin interface connector
Evaluates the IM828-XCC IPM module for your application
Gets the user's motor running within one hour in combination with Eval-M1-101T
Learn more about motor control in the high voltage domain
Infineon Technologies CIPOS™ Maxi
Integrate various power and control components to optimize PCB size and system costs.
