Infineon Technologies P-Channel Power MOSFETs
Infineon P-Channel Power MOSFETs offer an option that can simplify circuitry while optimizing performance. The large portfolio of P-Channel power MOSFETs is designed for a wide range of industrial and automotive applications. The main advantage of a P-Channel device is the reduction of design complexity in high- and low-power applications. P-Channel Power MOSFETs are ideally suited for battery protection, reverse polarity protection, linear battery chargers, load switching, DC-DC converters, and low voltage drive applications.
The extensive portfolio of P-Channel MOSFETs provides the perfect combination of high efficiency and ease of use. The MOSFETs are suitable for hard and soft switching (PFC and LLC) due to the outstanding commutation ruggedness.
The Infineon P-Channel Power MOSFETs include the -12V range of products that are ideally suited for battery protection, reverse polarity protection, linear battery chargers, load switched, DC-DC converters, and low voltage drive applications. P-Channel MOSFETs in the -30V range are often used in consumer electronics, such as notebooks, laptops, cellphones, and PDAs.
P-Channel Trench MOSFETs offer design flexibility and ease of handling to meet the highest performance requirements.
Low Voltage P-Channel MOSFETs extend battery life and offer excellent power density and a small footprint.
High Voltage P-Channel MOSFETs provide the perfect combination of high efficiency and ease of use. The High Voltage MOSFETs include high current P-Channel MOSFETs that are suitable for hard and soft switching (PFC and LLC).

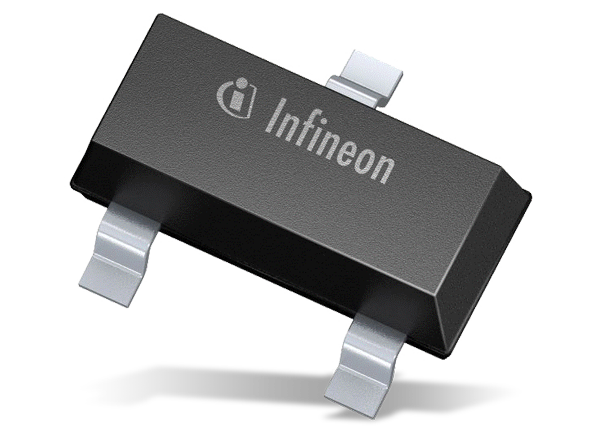

The MOSFETs are available in packages that include D²PAK, DPAK, DirectFET, IPAK, I2PAK, PQFN, SOT-223, TO-220, TO-247, SOT-23, TSOP-6, SuperSO8, and others.
Features
- P-Channel
- Low On-resistance RDS(on)
- 100% Avalanche tested
- Logic level or normal level
- Enhancement mode
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Applications
- Battery protection
- Reverse polarity protection
- Linear battery chargers
- Load switching
- DC-DC converters
- Low voltage drive
