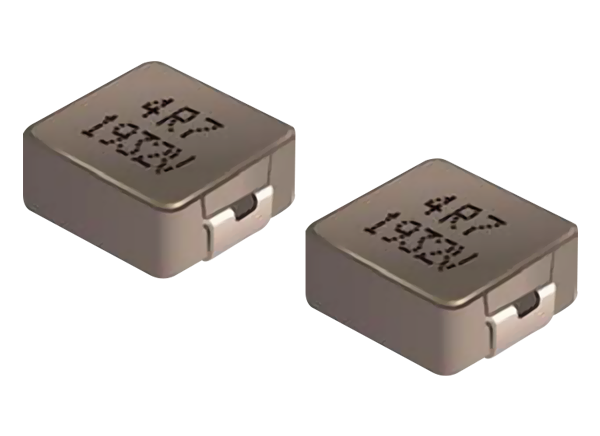

Bourns SRP1040VA AEC-Q200 Shielded Power Inductors
Bourns SRP1040VA AEC-Q200 Shielded Power Inductors offer a 1µH to 68µH inductance range, 3.5A to 29A saturation current, and -55°C to +180°C operating temperature range. These inductors are built with a new metal alloy powder formulation and round enamel-coated copper wire, allowing for an extremely high operating temperature that makes them AEC-Q200 compliant. Bourns SRP1040VA Inductors are well suited for DC/DC converters and power supplies where higher inductor reliability at elevated operating temperatures may be required.
Features
- Shielded construction
- Metal alloy powder core
- High saturation current
- Low buzz noise
- RoHS compliant and halogen free
Applications
- DC/DC converters
- Power supplies
Specifications
- AEC-Q200 compliant
- +180°C high operating temperature
- 1µH to 68µH inductance range
- 3.5A to 27A heating current
- 3.5A to 29A saturation current
- 11mm x 10mm x 3.8mm dimensions
