Bourns AC6830R Air Coil Inductors

Bourns AC6830R Air Coil Inductors are surface mount inductors with up to 43nH inductance. These inductors feature a 4A maximum IRMS, 150MHz test frequency, and up to 7.9mΩ maximum DCR. The AC6830R inductors come with an epoxy cover for mechanical stability. These inductors operate within the -25°C to 125°C temperature range and are RoHS compliant. The AC6830R inductors are used in applications such as radio transmitters, RF amplifiers, and high-frequency TV receivers.

Features

  • High Q value
  • Tight tolerance
  • Surface mount
  • Up to 43nH inductance
  • 150MHz test frequency
  • -25°C to 125°C operating temperature range
  • 4A maximum IRMS
  • Up to 10 turns

Applications

  • High-frequency TV and radio receivers
  • Radio transmitters
  • RF amplifiers
  • Tuning requirements

Product Dimensions

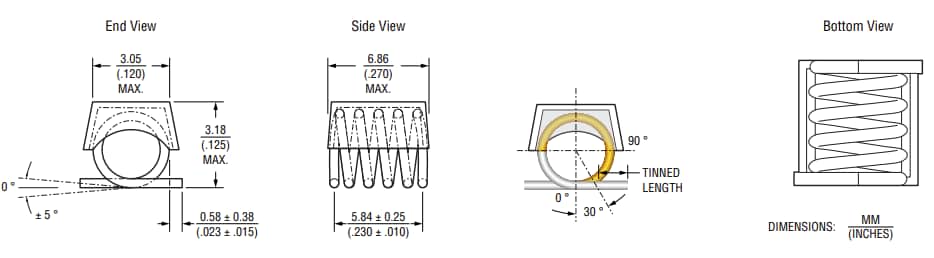

Mechanical Drawing - Bourns AC6830R Air Coil Inductors
View Results ( 10 ) Page
Part Number Datasheet Inductance Q Minimum Test Frequency Tolerance Self Resonant Frequency Maximum DC Current Maximum DC Resistance Maximum Operating Temperature Minimum Operating Temperature
AC6830R-43NG AC6830R-43NG Datasheet 43 nH 106 150 MHz 2 % 1.2 GHz 4 A 7.9 mOhms + 125 C - 25 C
AC6830R-17NG AC6830R-17NG Datasheet 17.5 nH 100 150 MHz 2 % 2.2 GHz 4 A 4.5 mOhms + 125 C - 25 C
AC6830R-22NG AC6830R-22NG Datasheet 22 nH 102 150 MHz 2 % 2.1 GHz 4 A 5.2 mOhms + 125 C - 25 C
AC6830R-28NG AC6830R-28NG Datasheet 28 nH 105 150 MHz 2 % 1.8 GHz 4 A 6 mOhms + 125 C - 25 C
AC6830R-35NG AC6830R-35NG Datasheet 35.5 nH 112 150 MHz 2 % 1.5 GHz 4 A 6.8 mOhms + 125 C - 25 C
AC6830R-17NJ AC6830R-17NJ Datasheet 17.5 nH 100 150 MHz 5 % 2.2 GHz 4 A 4.5 mOhms + 125 C - 25 C
AC6830R-22NJ AC6830R-22NJ Datasheet 22 nH 102 150 MHz 5 % 2.1 GHz 4 A 5.2 mOhms + 125 C - 25 C
AC6830R-28NJ AC6830R-28NJ Datasheet 28 nH 105 150 MHz 5 % 1.8 GHz 4 A 6 mOhms + 125 C - 25 C
AC6830R-35NJ AC6830R-35NJ Datasheet 35.5 nH 112 150 MHz 5 % 1.5 GHz 4 A 6.8 mOhms + 125 C - 25 C
AC6830R-43NJ AC6830R-43NJ Datasheet 43 nH 106 150 MHz 5 % 1.2 GHz 4 A 7.9 mOhms + 125 C - 25 C
