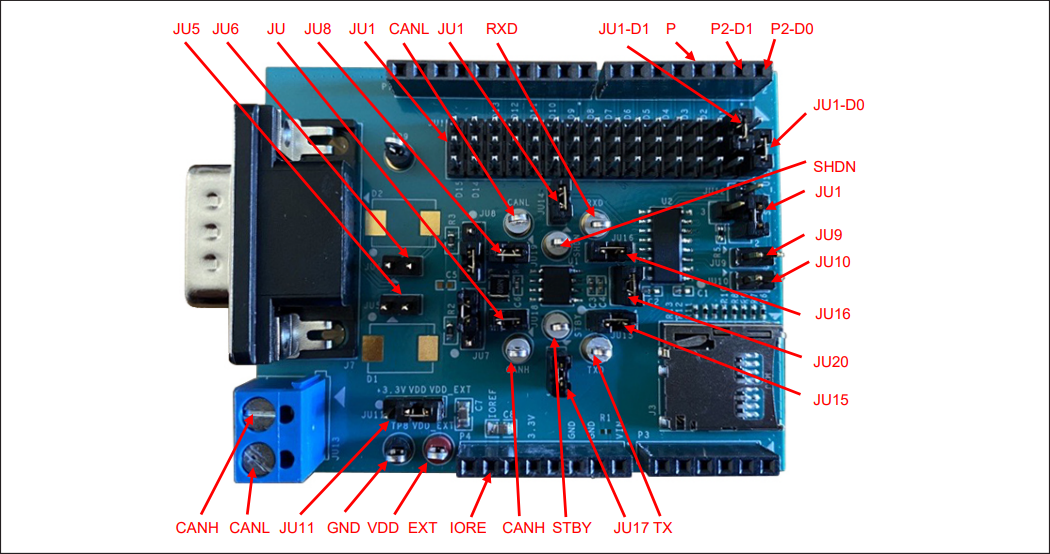

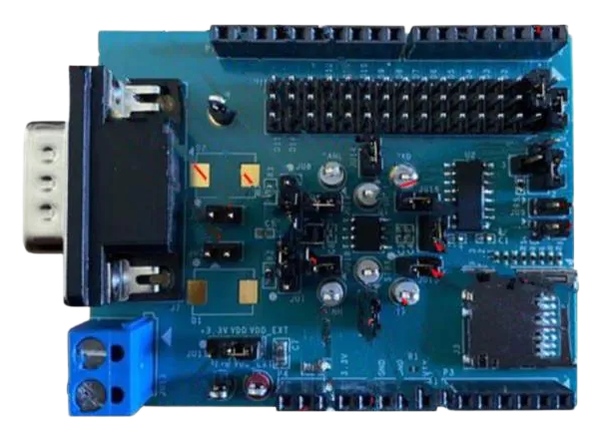

Analog Devices MAX33041E Shield is used to demonstrate the functionality of the MAX33041E controller area network (CAN) transceiver. The transceiver features ±40V fault protection, extended ±25V common-mode input range, and ±40kV ESD Human Body Model (HBM). The Analog Devices shield features a digital isolator, which is used as a level translator between the CAN transceiver and the controller interface.
Easy Evaluation of the MAX33041E
I/O Interface Compatibility from 1.71V to 5.5V
Proven PCB Layout
Mbed™/Arduino® Platform Compatible
Fully Assembled and Tested
Analog Devices / Maxim Integrated MAX33040E/MAX33041E CAN Transceivers
Have extended ±40V fault protection on CANH and CANL.
