Analog Devices MAX22288 Home Bus System Compatible Transceivers are used where data and power are passed on a single pair of wires. The transceivers minimize the need for external components and provide robust communication by using dynamic cable termination. This improves signal quality with longer cables and higher data rates. The device data outputs AIO/BIO do not load the bus when the MAX22288 is not powered. The Analog Devices MAX22288 supports passing data with a speed of up to 200kbps.
Robust Communication with Configurability
Dynamic Cable Termination Improves Signal Quality for High-Speed Applications
Adjustable Slew Rates for Low EMI
Maximum Data Rate up to 200kbps over 1000m UTP Cable
Programmable Receiver Thresholds

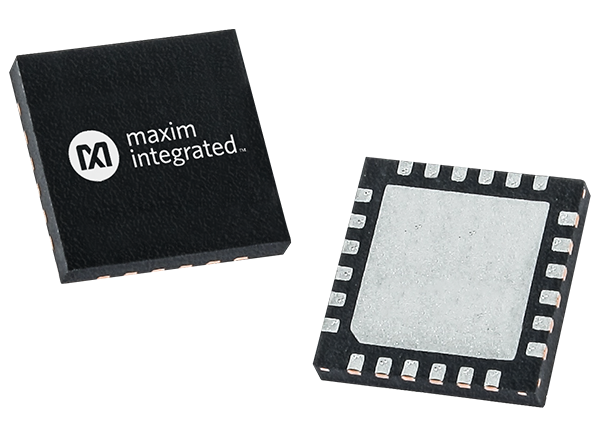

4mm x 4mm TQFN package
Pin-to-pin Compatible with the MAX22088
IEC 61000-4-2 ±8kV Contact and ±15kV Air-Gap ESD Protection
IEC 61000-4-5 ±1kV Transient Surge Protection with Selected External Components
-40°C to +125°C Operating Temperature Range

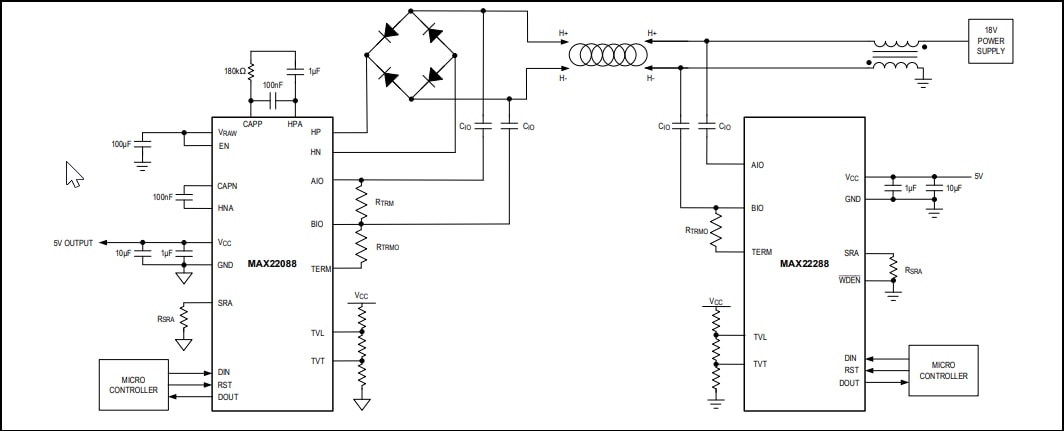

Simplified Home Bus System (HBS)
Analog Devices / Maxim Integrated MAX22288 Evaluation Kit
Used to evaluate the MAX22288 Home Bus System (HBS) compatible transceiver.
