4D LCD 50800480 5.0" TFT Liquid Crystal Displays
4D LCD 50800480 5.0" TFT Liquid Crystal Displays are color-active matrix LCD modules that integrate an amorphous silicon thin-film transistor. The 50800480 display incorporates a color TFT-LCD panel, driver IC, FPC, and a backlight unit. The device includes optional Resistive/CapacitiveTouch Panels (RTP or CTP) or a Cover Lens Bezel (CLB) choice. The 4D LCD 50800480 5.0" TFT Liquid Crystal Displays display area is 800x 480 pixels.
Features
- LCD types of TFT / Transmissive / Normally white
- 5" size
- The touch panel is available in non-touch, resistive touch, and capacitive touch
- 12:00 viewing direction
- 6:00 gray scale inversion direction
- 108.00mm × 64.80mm active area (W x H)
- 0.135mm x 0.135mm dot pitch (W x H)
- 800 x 480 display resolution pixels
- Interface type is parallel RGB 24-bit
- Surface luminance
- 4DLCD-50800480: 500cd/m2 (typical)
- 4DLCD-50800480-RTP: 400cd/m2 (typical)
- 4DLCD-50800480-CTP: 475cd/m2 (typical)
- 4DLCD-50800480-CTP-CLB: 475cd/m2 (typical)
- 16.7M color depth
- Source (ILI6122) and gate (ILI5960) driver IC
- 12 LEDs backlight type
- RGB vertical stripe pixel arrangement
- AG surface treatment
- 3.3V (typical) input voltage
- Module Size - W x H x T
- 4DLCD-50800480: 120.70mm x 75.80mm x 2.9mm
- 4DLCD-50800480-RTP: 120.70mm x 75.80mm x 4.10mm
- 4DLCD-50800480-CTP: 120.70mm x 75.80mm x 4.55mm
- 4DLCD-50800480-CTP-CLB: 140.70mm x 93.83mm x 4.54mm (Including CLB)
- -20°C to +70°C operating temperature range
- RoHS compliant
Display Drawing (Non Touch Version)
.png "Mechanical Drawing - 4D LCD 50800480 5.0")
Display Drawing (Resistive Touch Version)
.png "Mechanical Drawing - 4D LCD 50800480 5.0")

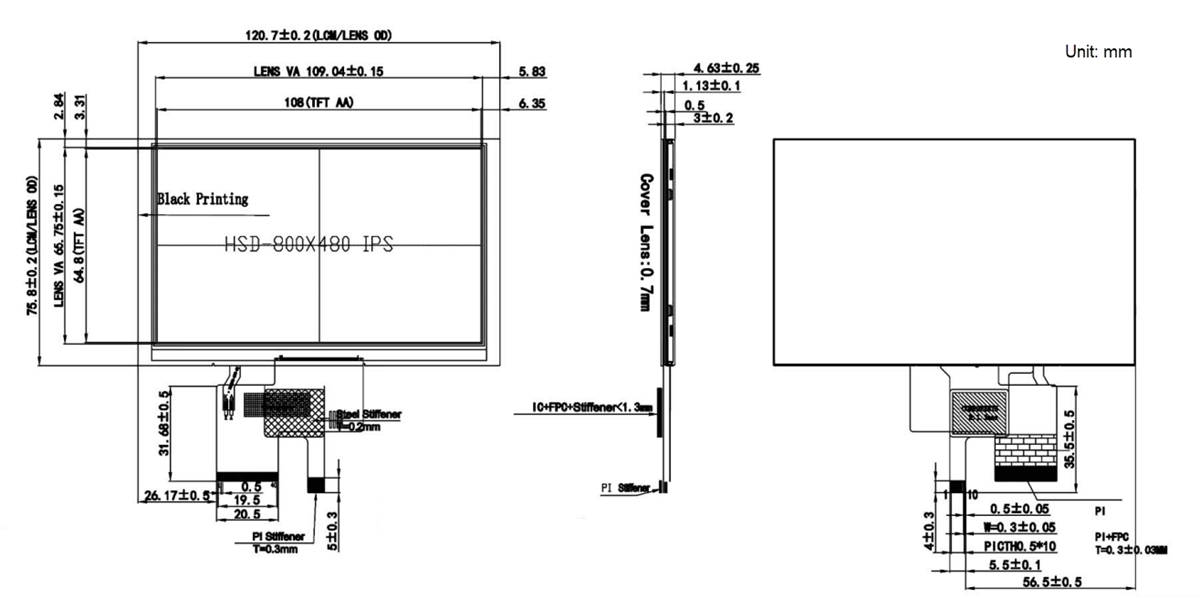

Display Drawing (Capacitive Touch Version)
.png "Mechanical Drawing - 4D LCD 50800480 5.0")

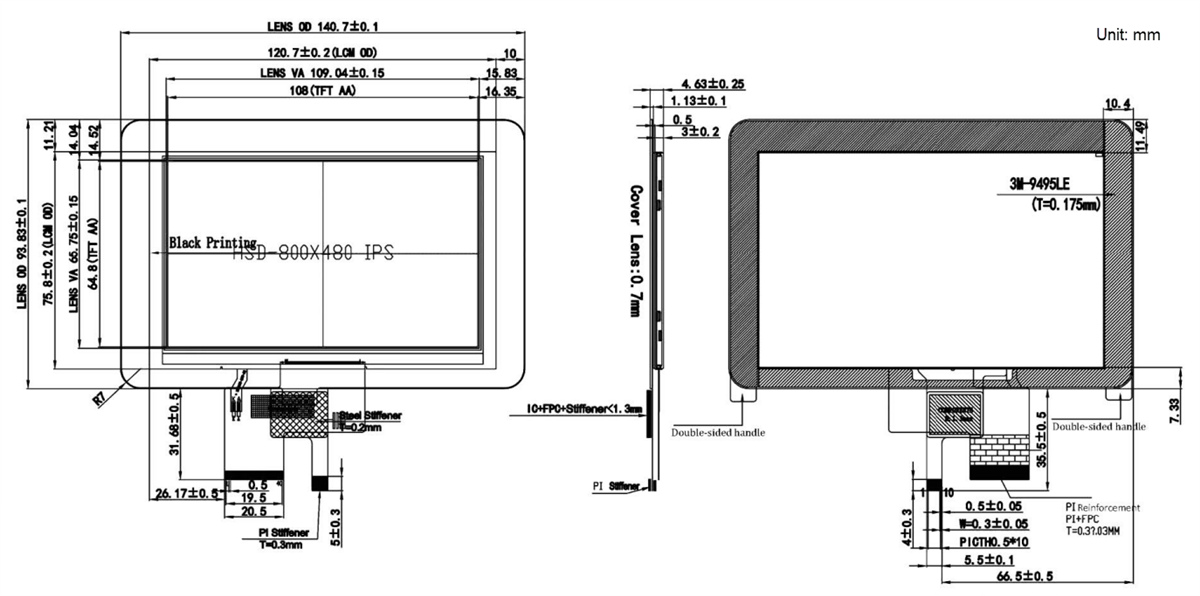

Display Drawing (Capacitive Touch Version with Cover Lens Bezel)
.png "Mechanical Drawing - 4D LCD 50800480 5.0")
