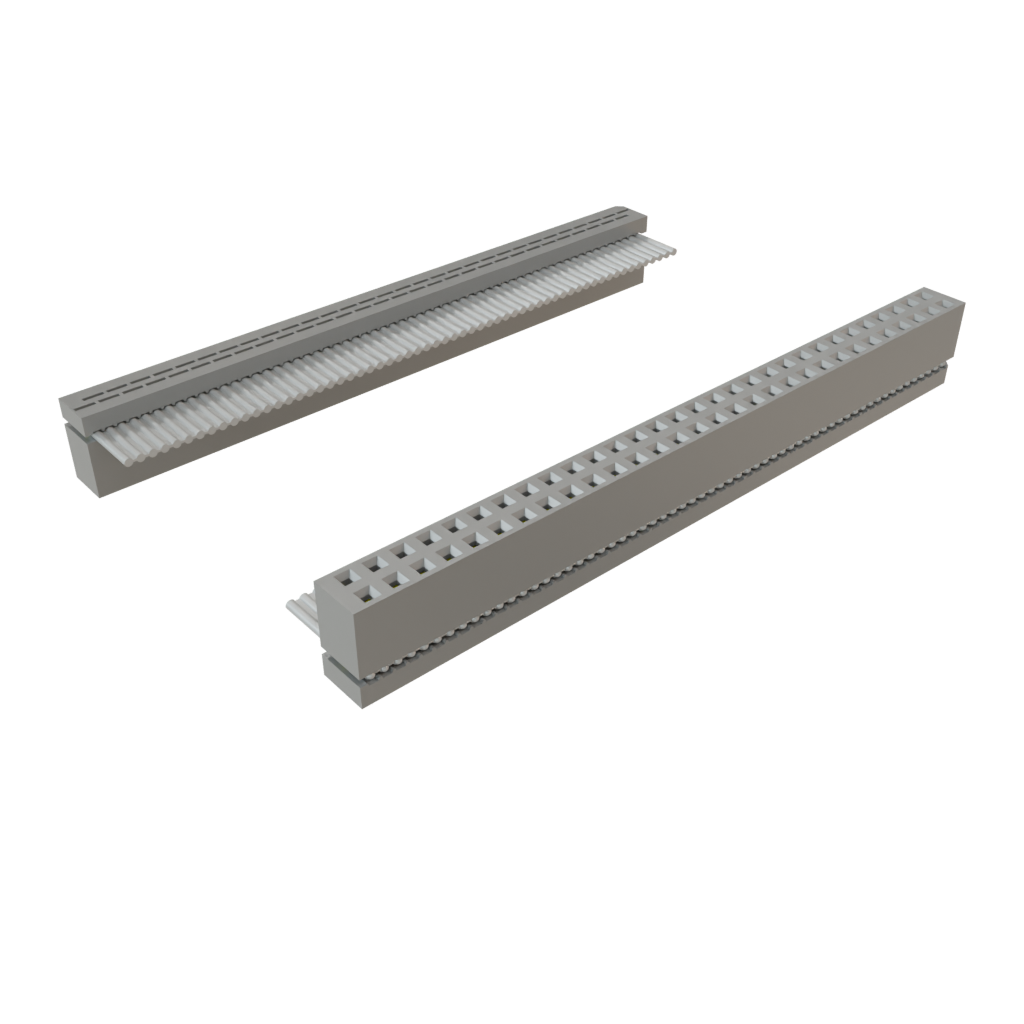

IDSD-30-D-03.00-R

Samtec

Images are for reference only
See Product Specifications

Mouser No:

200-IDSD30D0300R

Mfr. No:

IDSD-30-D-03.00-R

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables Slim Body Double-Row IDC Socket Assemblies

Datasheet:

IDSD-30-D-03.00-R Datasheet (PDF)

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	Flat Ribbon
Connector End A:	IDC Socket
Connector End A Pin Count:	60 Position
Connector End B:	IDC Socket
Connector End B Pin Count:	60 Position
Pitch:	2.54 mm
Gender:	Female / Female
Cable Length:	76.2 mm
Wire Gauge - AWG:	28 AWG
Series:	IDSD
Packaging:	Bulk
Brand:	Samtec
Current Rating:	3.4 A
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	IDC Ribbon Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Voltage Rating:	425 VAC/600 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IDSD-30-D-03.00-R Datasheet (PDF)

Images


Specification Sheets

Product Drawing (PDF)

Technical Resources

Test Report (PDF)

Compliance Codes

TARIC:: 8544429090
USHTS:: 8544429090
ECCN:: EAR99

Origin Classifications

Country of Origin:: Malaysia
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

FEATURED PRODUCTS

SAMTEC

HQDP Q Pairs® Twinax Cable Assemblies

Offers a 0.50mm pitch, 100Ω differential signal routing, and -25°C to +105°C temperature range.

ERDP Edge Rate® Twinax Cable Assemblies

Offers a 0.80mm pitch rating, 100Ω differential signal routing, and 30AWG twinax cable.

SEAC SEARAY™ High-Speed Array Cable Assemblies

Mate with SEARAY sockets and feature a 0.4A current rating, and an operating humidity range of up to 95%.

Supports the ultra-high frequencies and high data rates that emerging 5G technologies demand.

TCSD/TCMD Tiger Eye™ IDC Cable Assemblies

Features a 2.00mm (.0787") pitch connection that operates in a -40°C to +105°C temperature range.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	16,61 €	16,61 €
	15,40 €	154,00 €
	14,37 €	359,25 €
	13,67 €	683,50 €
	12,78 €	1.278,00 €
	12,44 €	3.110,00 €
