SOLC-115-02-S-Q-A-K

Name: Samtec SOLC-115-02-S-Q-A-K
Brand: Samtec
SKU: 200-SOLC11502SQAK
Price: 11.95 EUR
Availability: InStock

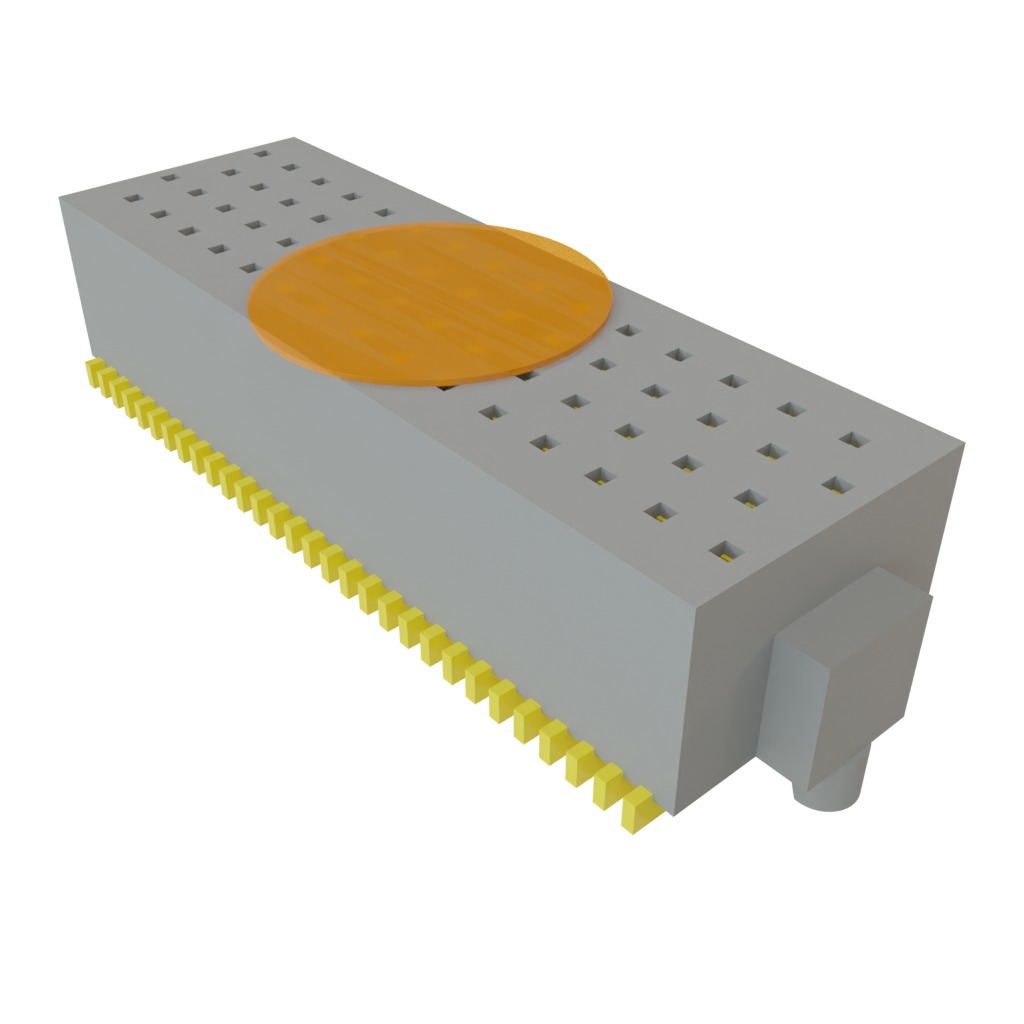

Images are for reference only
See Product Specifications

Mouser No:

200-SOLC11502SQAK

Mfr. No:

SOLC-115-02-S-Q-A-K

Mfr.:

Samtec
Samtec

Description:

Board to Board & Mezzanine Connectors .050 FOURRAY Quad Row Tiger Buy Socket Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 37

Stock:: 37 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	11,95 €	11,95 €
	11,53 €	115,30 €

Alternative Packaging

Mfr. Part No.:

SOLC-115-02-S-Q-A-K-TR

Packaging:

Reel, Cut Tape

Availability:

In Stock

Price:

12,02 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	60 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	4 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	6.35 mm
Current Rating:	2.4 A
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SOLC
Packaging:	Tube
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	26
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	FOURRAY, Tiger Buy
Unit Weight:	619,650 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SOLC-115-02-S-Q-A-K Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
