PCIE-064-02-S-D-RA

Name: Samtec PCIE-064-02-S-D-RA
Brand: Samtec
SKU: 200-PCIE06402SDRA
Price: 9.94 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-PCIE06402SDRA

Mfr. No:

PCIE-064-02-S-D-RA

Mfr.:

Samtec

Description:

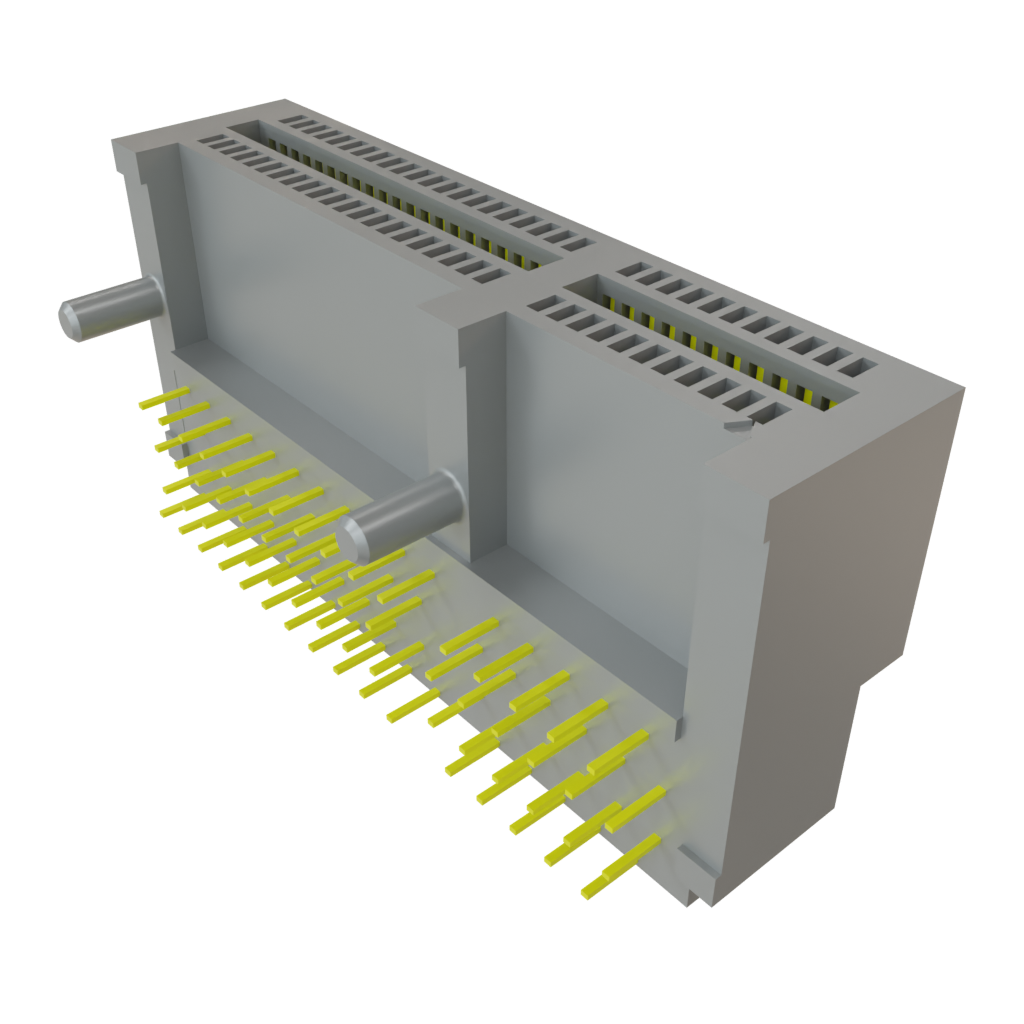

PCI Express/PCI Connectors 1.00 mm PCI Express(R) Gen 3 Edge Card Connector

Datasheet:

PCIE-064-02-S-D-RA Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec PCIE-064-02-S-D-RA

In Stock: 15

Stock:: 15 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,94 €	9,94 €
	8,97 €	89,70 €
	7,98 €	223,44 €
	6,52 €	365,12 €
	6,34 €	710,08 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	PCI Express/PCI Connectors
RoHS:
Product:	PCI Express
Number of Positions:	64 Position
Mounting Style:	Through Hole
Mounting Angle:	Right Angle
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Series:	PCIE
Board Thickness:	7.65 mm
Brand:	Samtec
Current Rating:	2.4 A
Description/Function:	PCI express card sockets
Height:	11 mm
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tube
Product Type:	PCI Express / PCI Connectors
Factory Pack Quantity:	14
Subcategory:	Card Edge Connectors
Tradename:	PCI Express

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

PCI Express® Edge Card Sockets

Samtec PCI Express® Edge Card Sockets feature a 1.00mm pitch and support 1, 4, 8, and 16 PCI Express links. These sockets come in four designs: PCIE 3.0, PCIE 4.0 (PCIE-LP), PCIE 4.0 (PCIE-G4), and PCIE 5.0/6.0. The PCIE 4.0 (PCIE-LP) solution has a low-profile design for space savings, while the PCIE 4.0 (PCIE-G4) solution features a slim body design, and the PCIE 5.0 solution offers differential pair signaling. Samtec PCI Express Edge Card Sockets mate with 1.6mm thick cards and have vertical, right-angle, and edge-mount options.

High-Speed Edge Card Connectors

Samtec High-Speed Edge Card Connectors feature a wide variety of pitches, including 0.5mm, 0.635mm, 0.8mm, 1mm, 1.27mm, 1.6mm, and 2mm. Mounting angles include straight, right, and vertical. These connectors are offered in an expansive range of mounting styles such as edge mount, board lock, mounting peg, SMD/SMT, straddle mount, through hole, and more. The number of positions on Samtec High-Speed Edge Card Connectors ranges from 8 to 300.
