STL325N4F8AG

Name: STMicroelectronics STL325N4F8AG
Brand: STMicroelectronics
SKU: 511-STL325N4F8AG
Price: 2.96 EUR
Availability: InStock

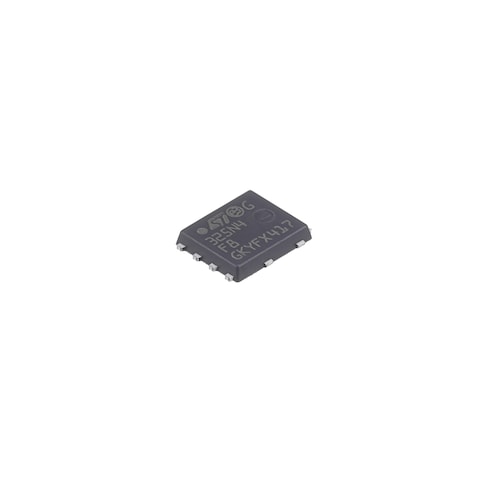

Images are for reference only
See Product Specifications

Mouser No:

511-STL325N4F8AG

Mfr. No:

STL325N4F8AG

Mfr.:

STMicroelectronics

Description:

MOSFETs Automotive N-Channel 40 V, 0.85 mOhm max., 350A STripFET F8 Power MOSFET

Complete Your Design

Datasheet:

STL325N4F8AG Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STL325N4F8AG

In Stock: 2.534

Stock:: 2.534 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 21 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 3000)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	2,96 €	2,96 €
	1,93 €	19,30 €
	1,36 €	136,00 €
	1,11 €	555,00 €
	1,08 €	1.080,00 €
Full Reel (Order in multiples of 3000)
	0,918 €	2.754,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	MOSFETs
RoHS:
Technology:	Si
Mounting Style:	SMD/SMT
Package/Case:	PowerFLAT-4
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	40 V
Id - Continuous Drain Current:	373 A
Rds On - Drain-Source Resistance:	1.1 mOhms
Vgs - Gate-Source Voltage:	- 16 V, 16 V
Vgs th - Gate-Source Threshold Voltage:	2 V
Qg - Gate Charge:	95 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	188 W
Channel Mode:	Enhancement
Qualification:	AEC-Q101
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	STMicroelectronics
Configuration:	Single
Fall Time:	21 ns
Product Type:	MOSFETs
Rise Time:	6.5 ns
Series:	STripFET F8
Factory Pack Quantity:	3000
Subcategory:	Transistors
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	89 ns
Typical Turn-On Delay Time:	12.5 ns
Unit Weight:	76 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8541290000
CNHTS:: 8541290000
CAHTS:: 8541290000
USHTS:: 8541290065
JPHTS:: 854129000
MXHTS:: 8541299900
ECCN:: EAR99

Origin Classifications

Country of Origin:: Italy
Assembly Country of Origin:: Italy
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

STripFET F8 N-Channel Power MOSFETs

STMicroelectronics STripFET F8 N-Channel Power MOSFETs are AEC-Q101 qualified and offer a comprehensive package solution from 30V to 150V to meet all the requirements for very high-power-density solutions. These low-voltage MOSFETs feature STPOWER STripFET F8 technology. STripFET F8 technology saves energy and ensures low noise in power conversion, motor control, and power distribution circuits by cutting both on-resistance and switching losses while optimizing body-diode properties. The STMicroelectronics STripFET F8 N-Channel Power MOSFETs simplify system designs and increase efficiency in applications such as automotive, computer / peripherals, data centers, telecom, solar, power supplies / converters, battery chargers, home / professional appliances, gaming, drones, and more.
