3120-N323-P7T1-W19LG4-5A

Name: E-T-A Circuit Breakers 3120-N323-P7T1-W19LG4-5A
Brand: E-T-A
SKU: 457-323P7T1W19LG45A
Price: 43.86 EUR
Availability: InStock

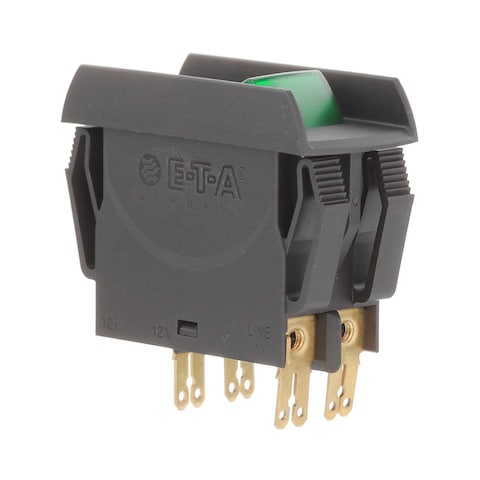

Images are for reference only
See Product Specifications

Mouser No:

457-323P7T1W19LG45A

Mfr. No:

3120-N323-P7T1-W19LG4-5A

Mfr.:

E-T-A
E-T-A

Description:

Circuit Breakers The 3120-N thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120-N is ideally suited for overload prot

Datasheet:

3120-N323-P7T1-W19LG4-5A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about E-T-A 3120-N323-P7T1-W19LG4-5A

In Stock: 3

Stock:: 3 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	43,86 €	43,86 €
	32,43 €	162,15 €
	31,20 €	312,00 €
	29,39 €	1.469,50 €
	26,38 €	2.638,00 €
	25,54 €	6.385,00 €
500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	E-T-A Circuit Breakers
Product Category:	Circuit Breakers
Series:	3120-N
Product:	Thermal Magnetic Circuit Breakers
Type:	Overcurrent Protection
Current Rating:	5 A
Voltage Rating AC:	240 VAC
Voltage Rating DC:	50 VDC
Number of Poles:	2 Pole
Actuator Type:	Rocker
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 60 C
Illuminated:	Illuminated
Brand:	E-T-A
Mounting Style:	Snap-In
Factory Pack Quantity:	10
Subcategory:	Circuit Breakers
Termination Style:	Blade
Voltage Rating:	50 VDC, 230 VAC
Unit Weight:	34 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

3120-N323-P7T1-W19LG4-5A Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CAHTS:: 8536200090
USHTS:: 8536200040
JPHTS:: 853620000
KRHTS:: 8536200000
BRHTS:: 85362000
ECCN:: EAR99

3120-N Next-Generation Circuit Breaker/Switch

E-T-A Circuit Breakers 3120-N Next-Generation Circuit Breaker/Switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. 3120-N Next-Generation Circuit Breaker/Switch, which replaces the 3120-F series, is ideally suited for overload protection of motors, pumps, transformers, and cables. After tripping, the device can reliably, easily, and quickly be reset. The positively trip-free mechanism ensures reliable circuit disconnection even with the actuator blocked.

3120-N323-P7T1-W19LG4-5A

Mfr.: E-T-A E-T-A

Description: Circuit Breakers The 3120-N thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120-N is ideally suited for overload prot

In Stock: 3

Pricing (EUR)

Specifications

Documents Documents (1) Documents (1)

Datasheet

Environmental Documents Environmental Documents Environmental Documents

Product Compliance

More Information

3120-N Next-Generation Circuit Breaker/Switch
